Composite panels for advertising

  • Panel width: 1220/1500 mm.
  • Panel length: up 1200 to 6000 mm.
  • Panel thickness: 3,0/4,0 mm.
  • Aluminum layer thickness: 0,2/0,3/0,4 mm.
  • Panel weight: 3,8-5,8 kg/m² (depends on panel thickness).
  • Aluminum layer alloy grade: 3003Н18.
  • Minimum bend radius: 300 mm.
  • Front side coating: РЕ.
  • Bench testing of coating: РЕ more than 5 years without loss of protective properties and appearance.
structure of aluminum composite panel for advertising

BILDEX aluminium composite panels are a multilayer sheet material. The outer layers are made of aluminium and the inner one is a complex composition of polymers and mineral fillers with mechanical properties resistant to flame. For the production of BILDEX ACPs we use aluminium alloys that have a high hardness and are corrosion resistant. It allows us to set mechanical properties of the panel and makes them durable. The right choice of initial components and technology of their bonding provide structural strength and are the keys to obtain a quality product and customers’ satisfaction. The front side of the panel is protected by a decorative polymer coating. The type of coating is determined based on the requirements for the facade, as well as on the color solutions determined by the author of the project. The main part of BILDEX panels is produced with a coating based on fluorinated resins, which are highly resistant to aggressive environmental influences. They may be easily processed using both hand tools and special equipment. The products made of the panels have a relatively low weight and high durability. BILDEX aluminium composite panels used for the construction of ventilated facades have a full package of permits confirming their fire safety.

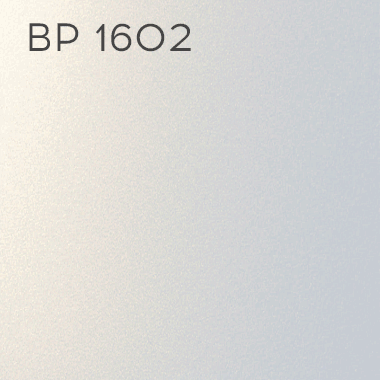

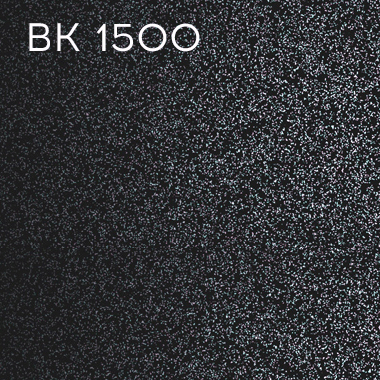

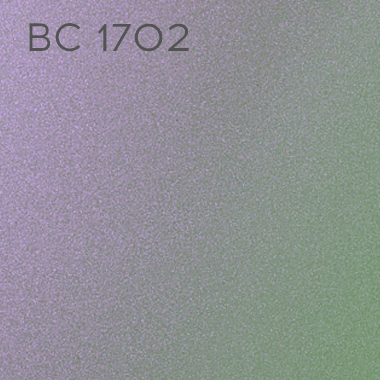

Color palettes

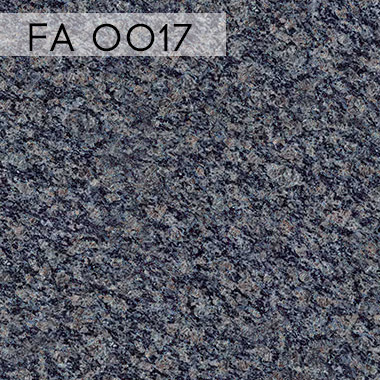

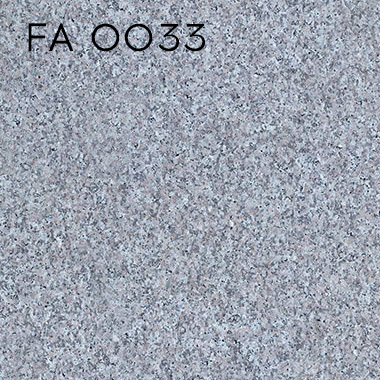

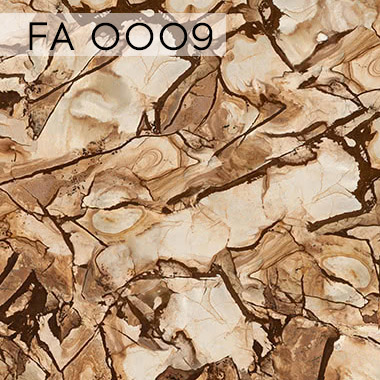

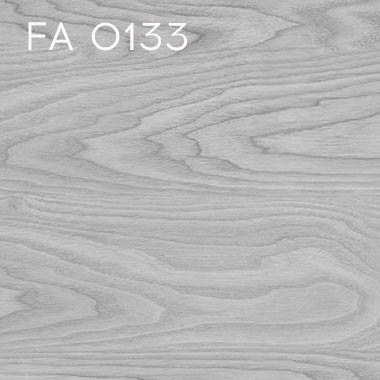

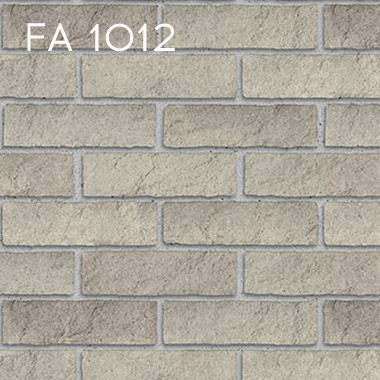

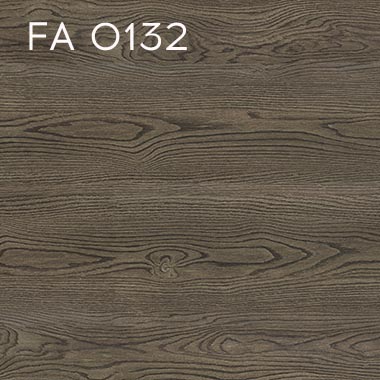

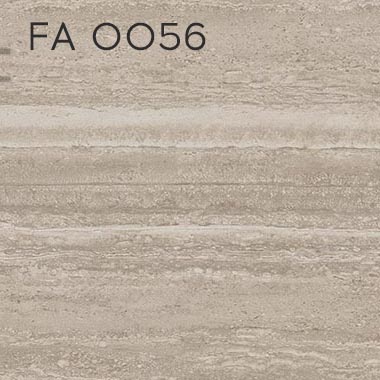

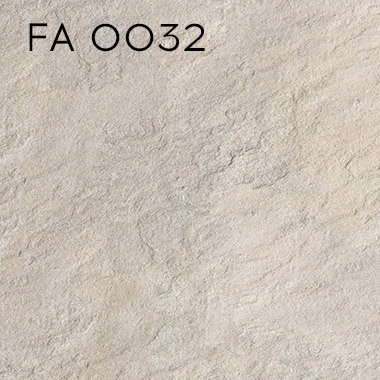

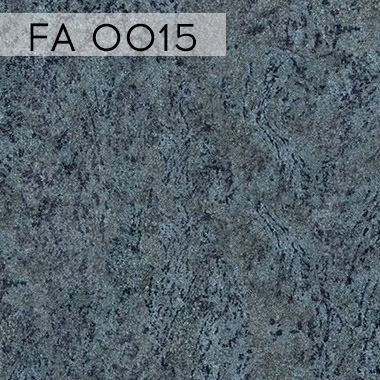

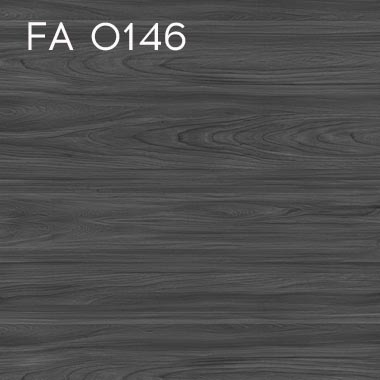

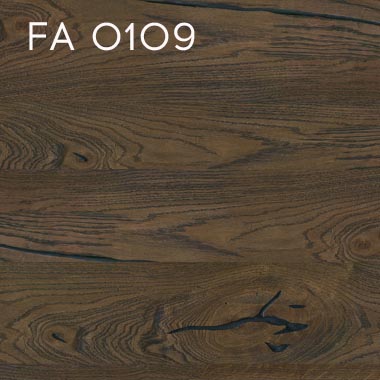

Imitation of natural structures - BILDEXart

Note! Colors shown here may differ slightly from the original colors of Bildex aluminum composite panels due to the color-rendering characteristics of your computer screen. To choose the required color please contact our sales managers who can send you the necessary palette samples.
